ExMP81R
Explosion Proof Mobile Light

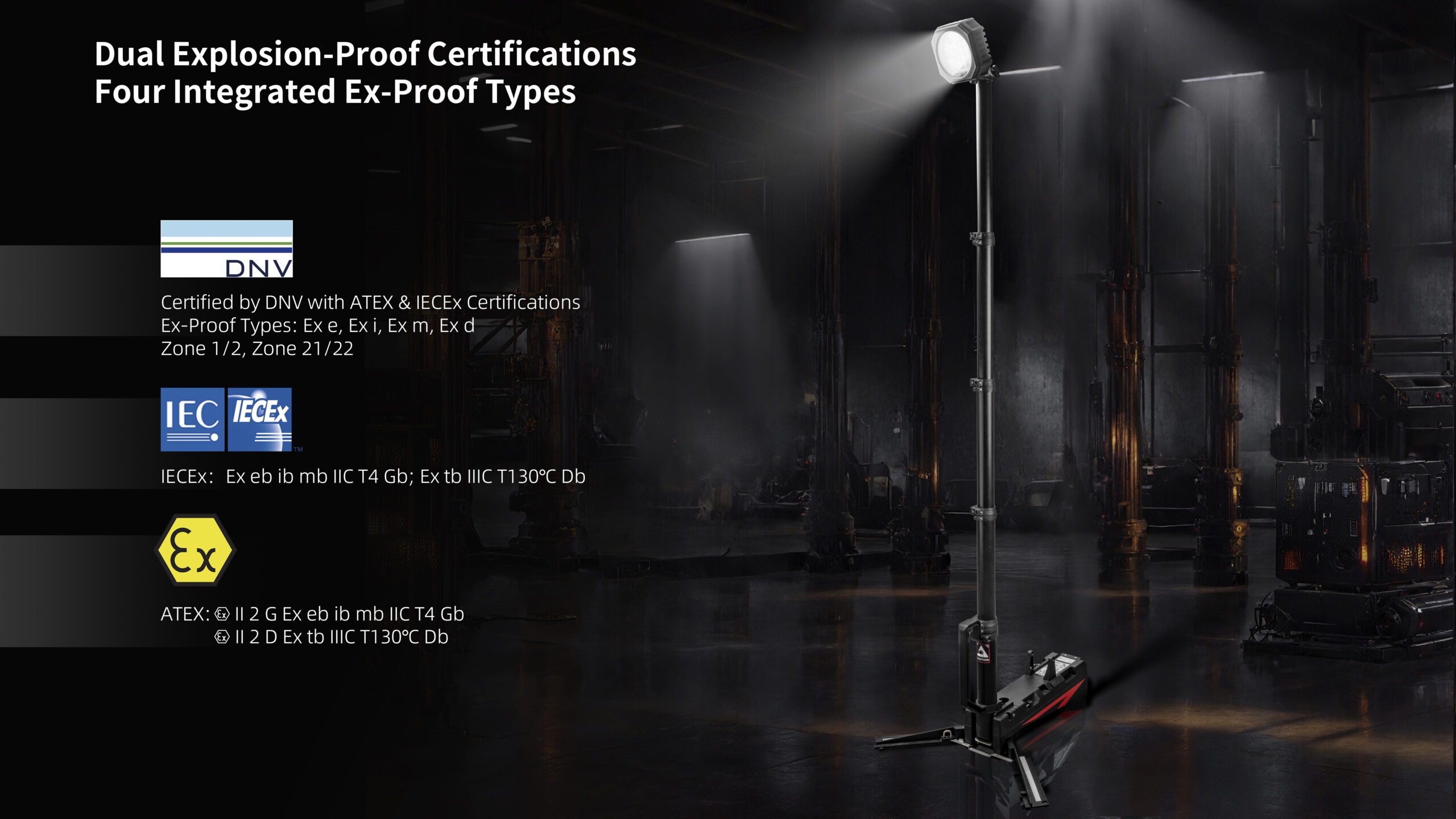

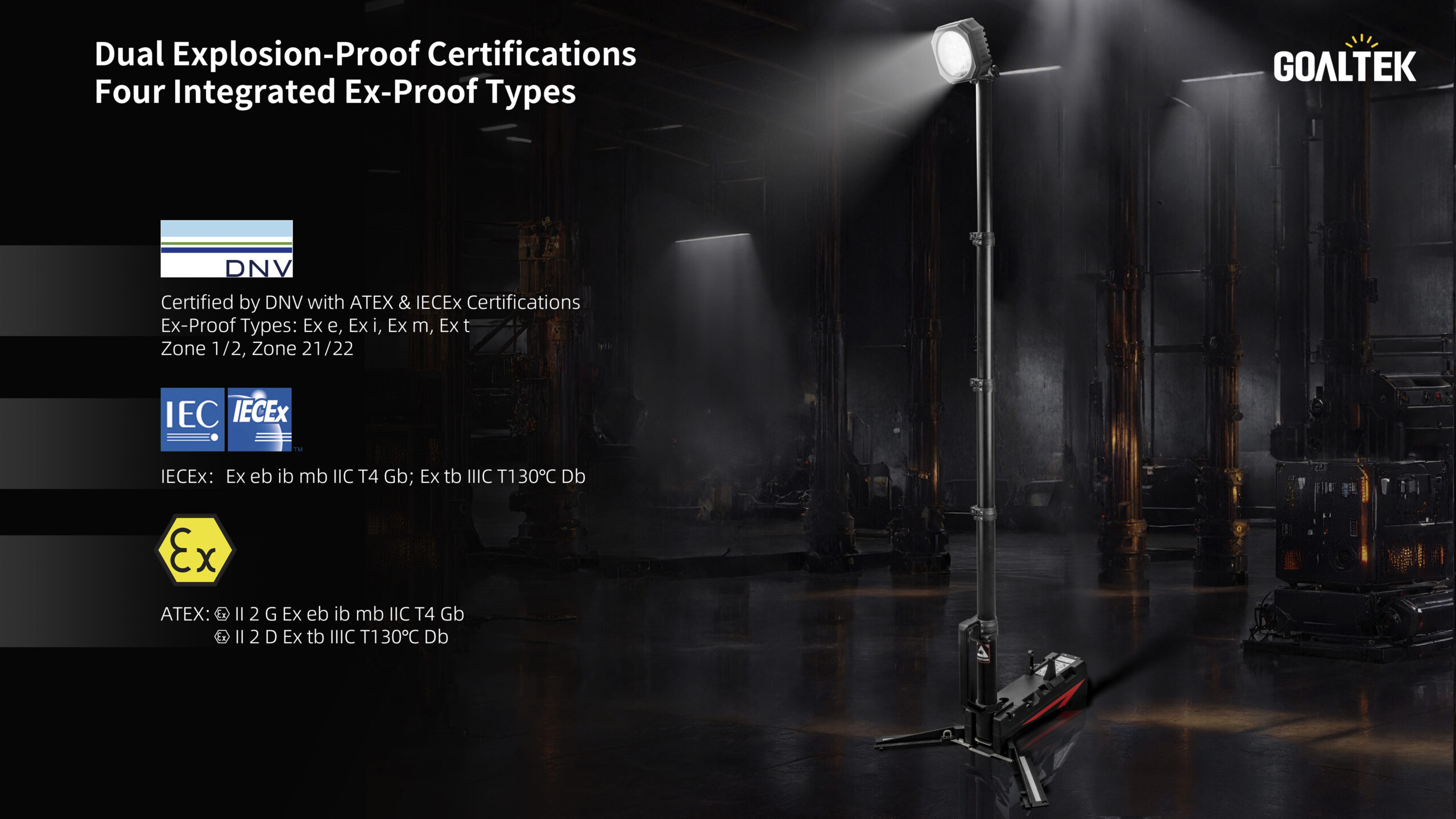

The ExMP81R is an explosion-proof mobile lighting tower for demanding environments. ATEX/IECEx certified for Class II Zone 1/2 & Class III Zone 21/22 areas, with IP66 rating and wide -20°C to +55°C operating range.

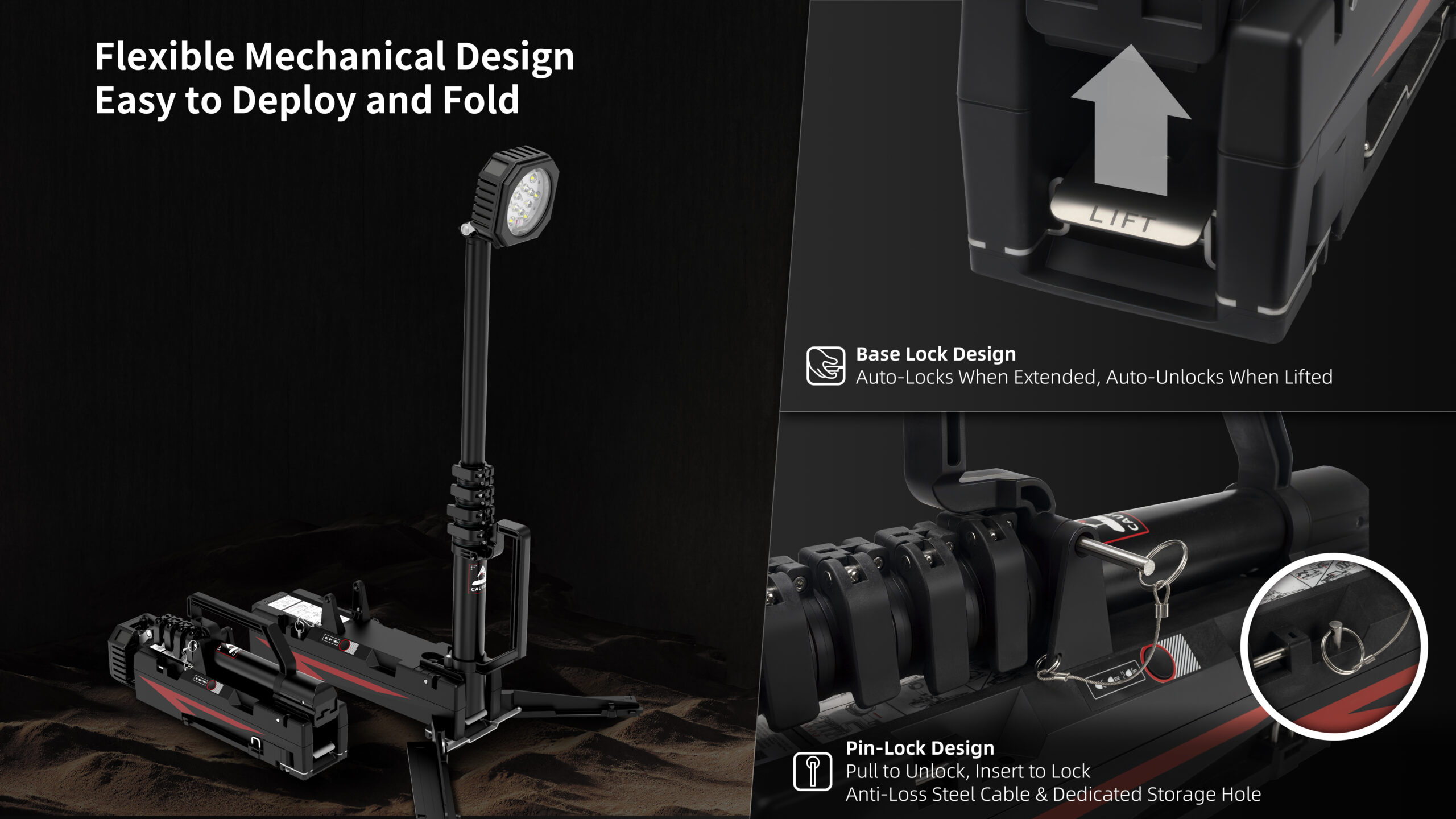

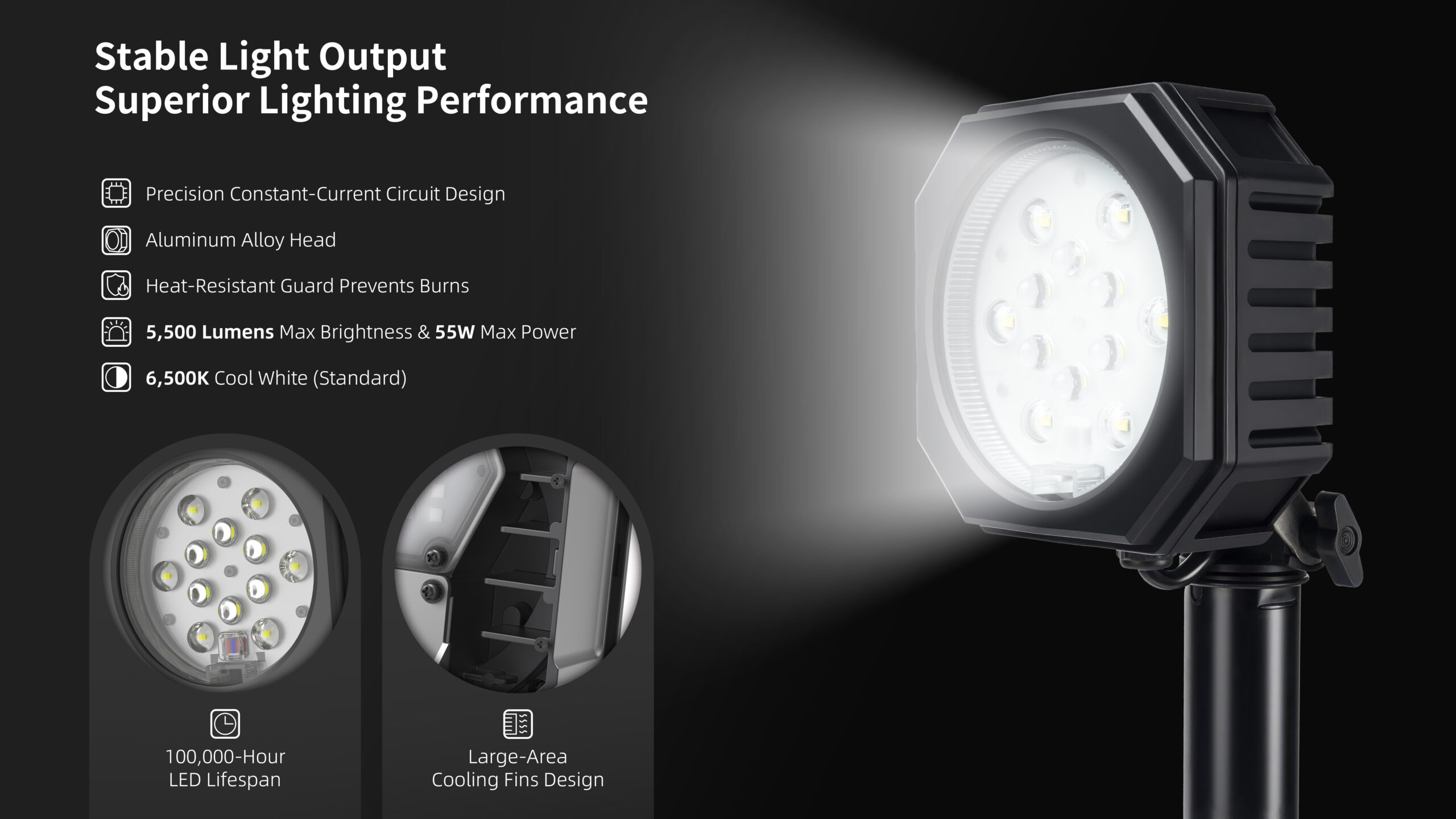

Features rapid ground deployment, 5500 lumens max output, and covers 200 ㎡. Its lamp head offers 300° horizontal and 115° vertical adjustment, plus 2150mm height extension.
Provides up to 18 hours runtime on a 7-hour charge. Your reliable, safe, wide-coverage lighting solution for hazardous areas.

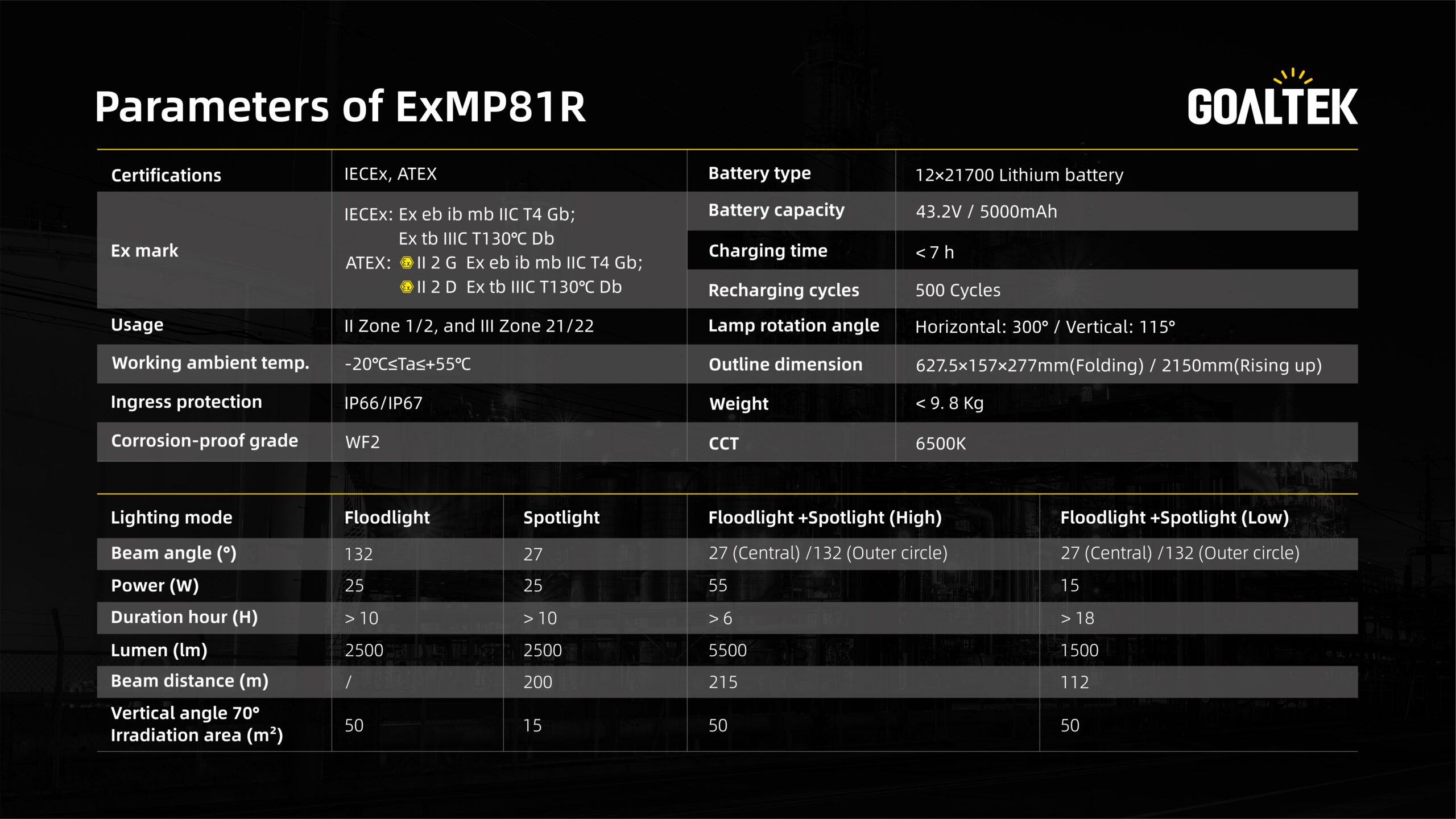

Parameters
ExMP81R
For pricing details, click 'GET A QUOTE' below;
For product info, download the manual or watch videos with the icons below.
Usage | Il Zone 1/2, and Ill Zone 21/22 |
Working ambient temp.: | -20°C≤Ta≤+55°C |
Ingress protection: | IP66/67(1m,30min) |

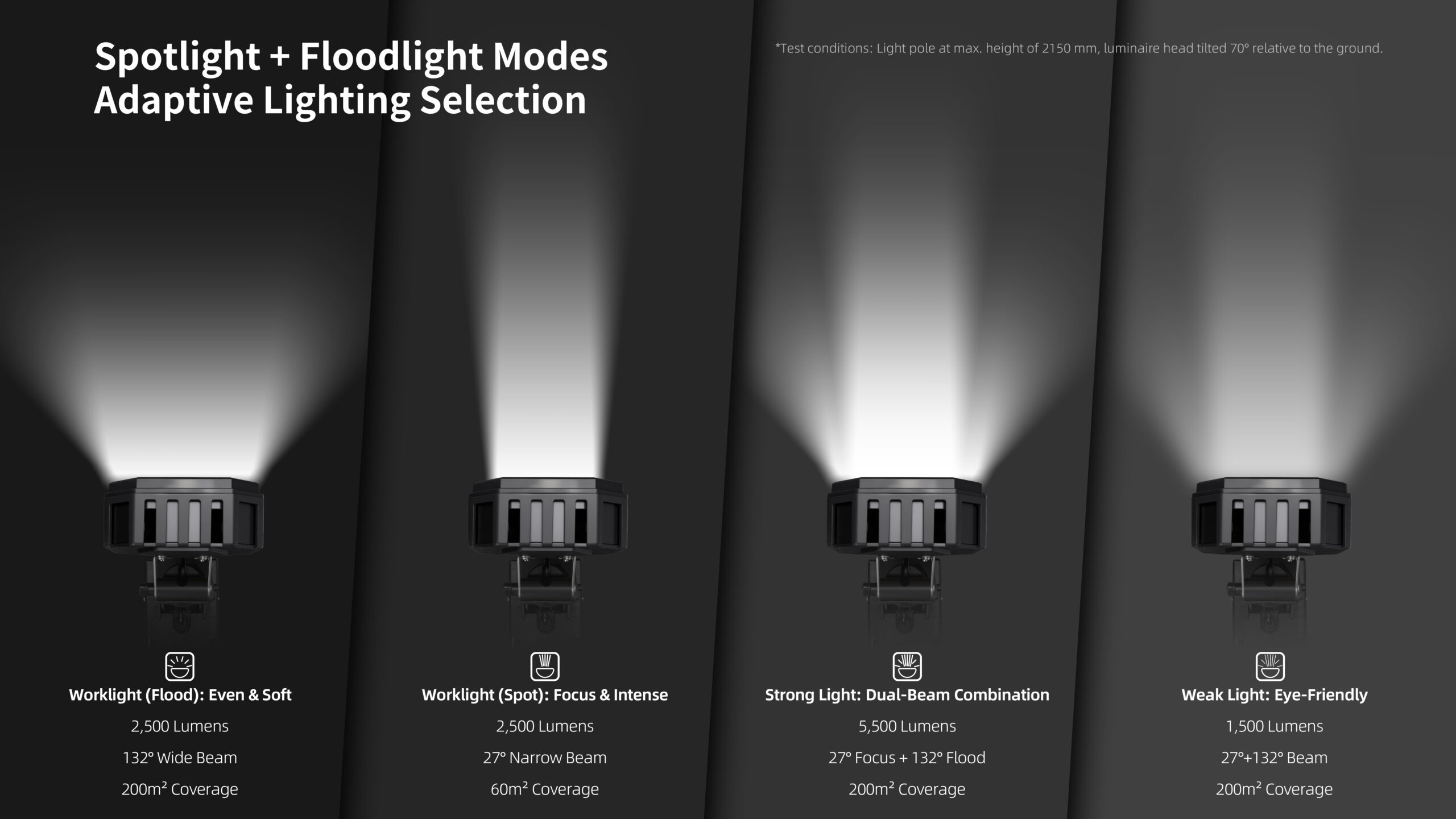

Luminous flux: | 2500lm (Flood/Spot) |
5500lm (High: Flood+Spot) | |
1500lm (Low: Flood+Spot) | |
Run time: | >10h (Flood/Spot) |
>6h (High) | |
>18h (Low) | |

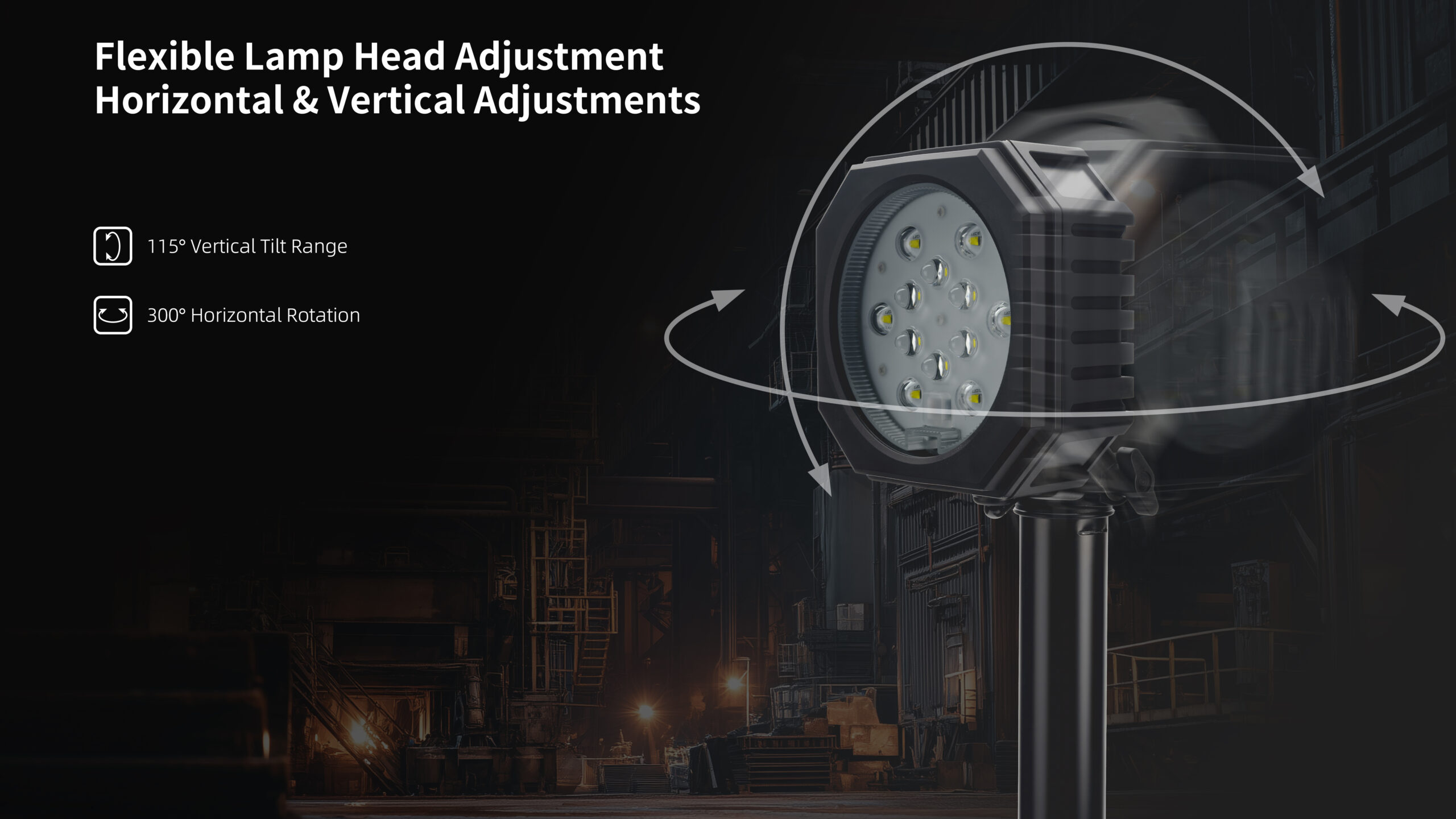

Lamp rotation angle: | 300º (Horizontal) |
115º (Vertical) | |
Vertical angle 70º irradiation area: | 200m² (Flood) |
60m² (Spot) | |
200m² (Flood+Spot) | |

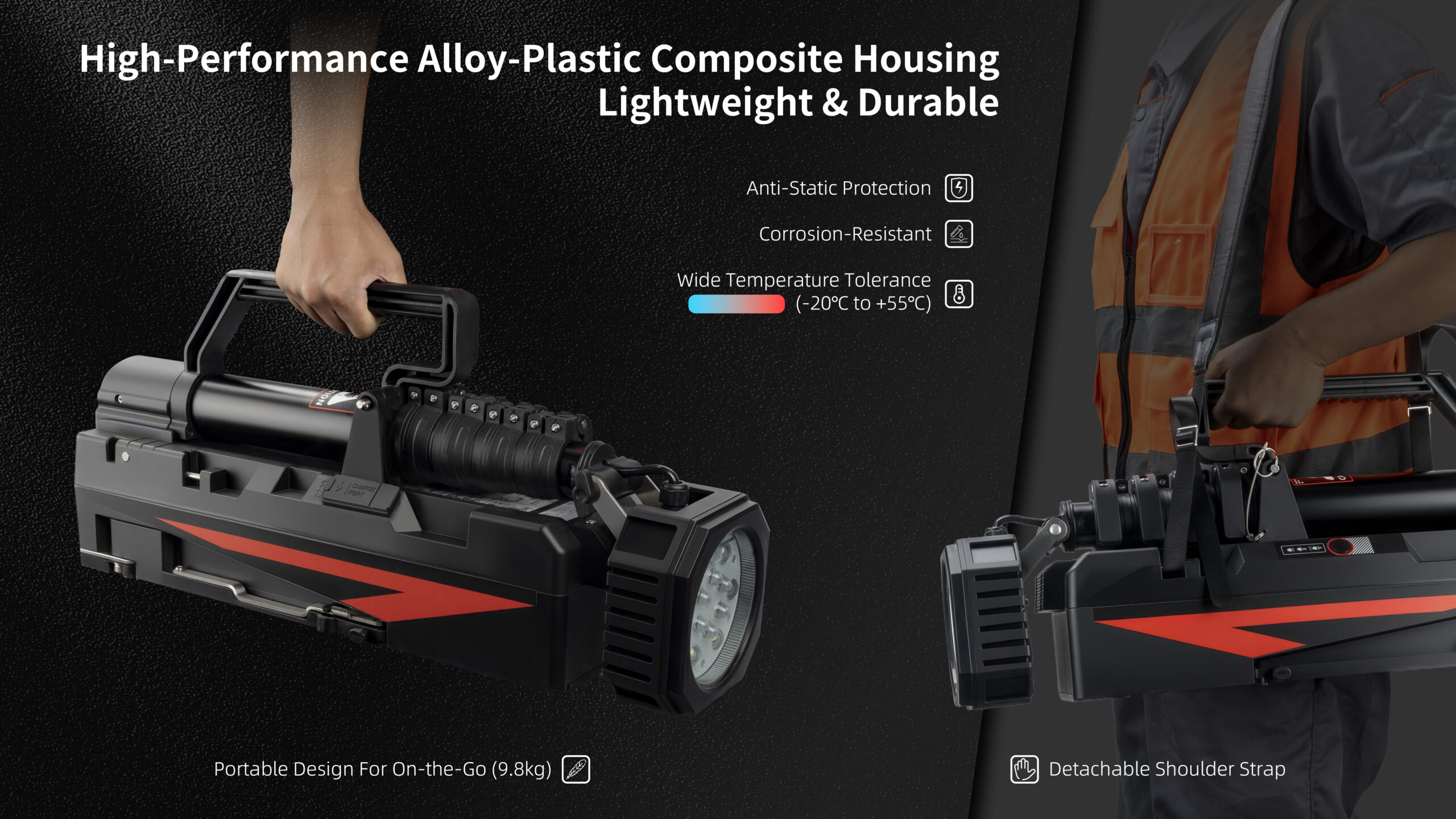

Weight: | < 10 Kg |

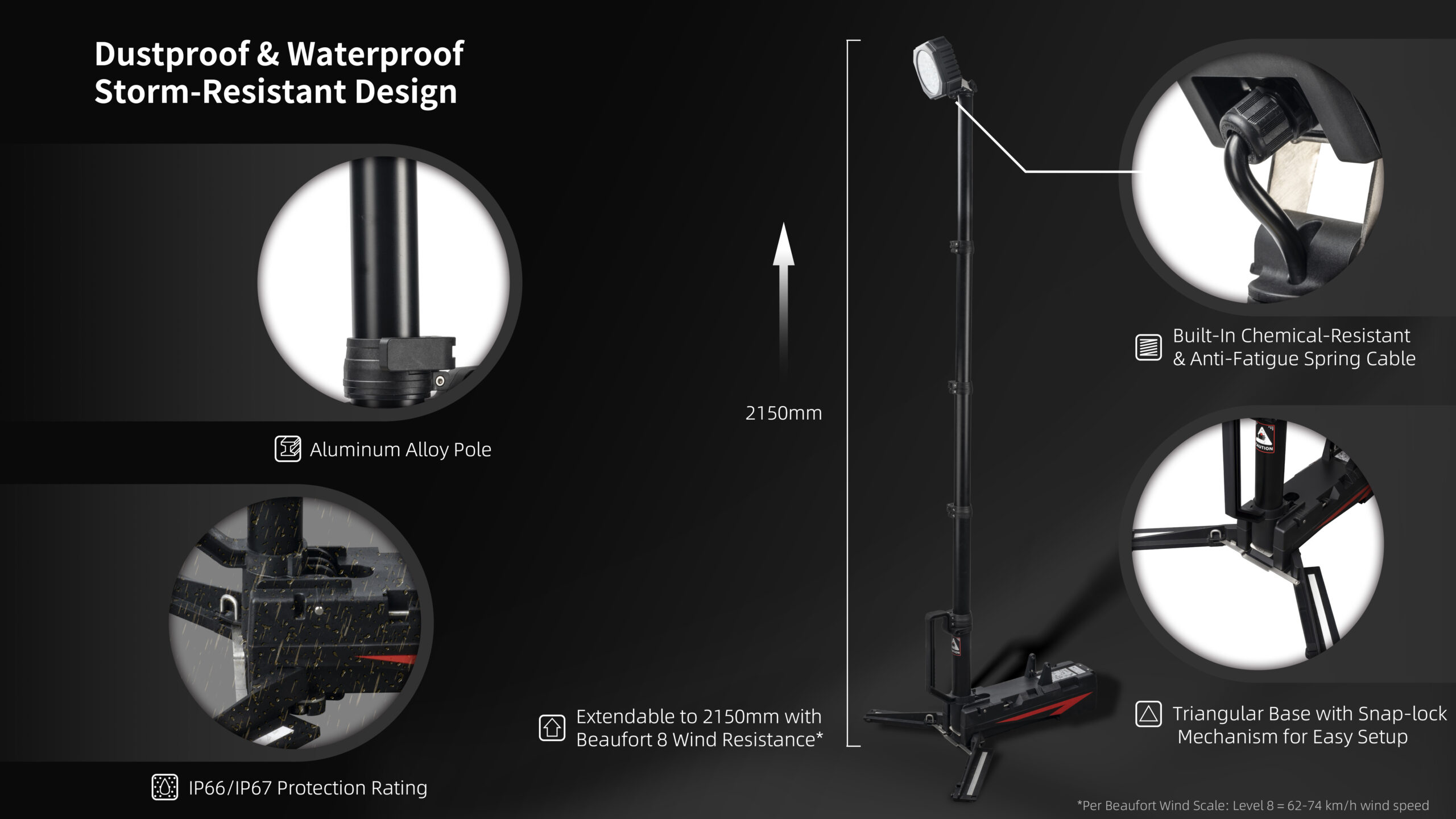

Height (Max): | 2150mm |

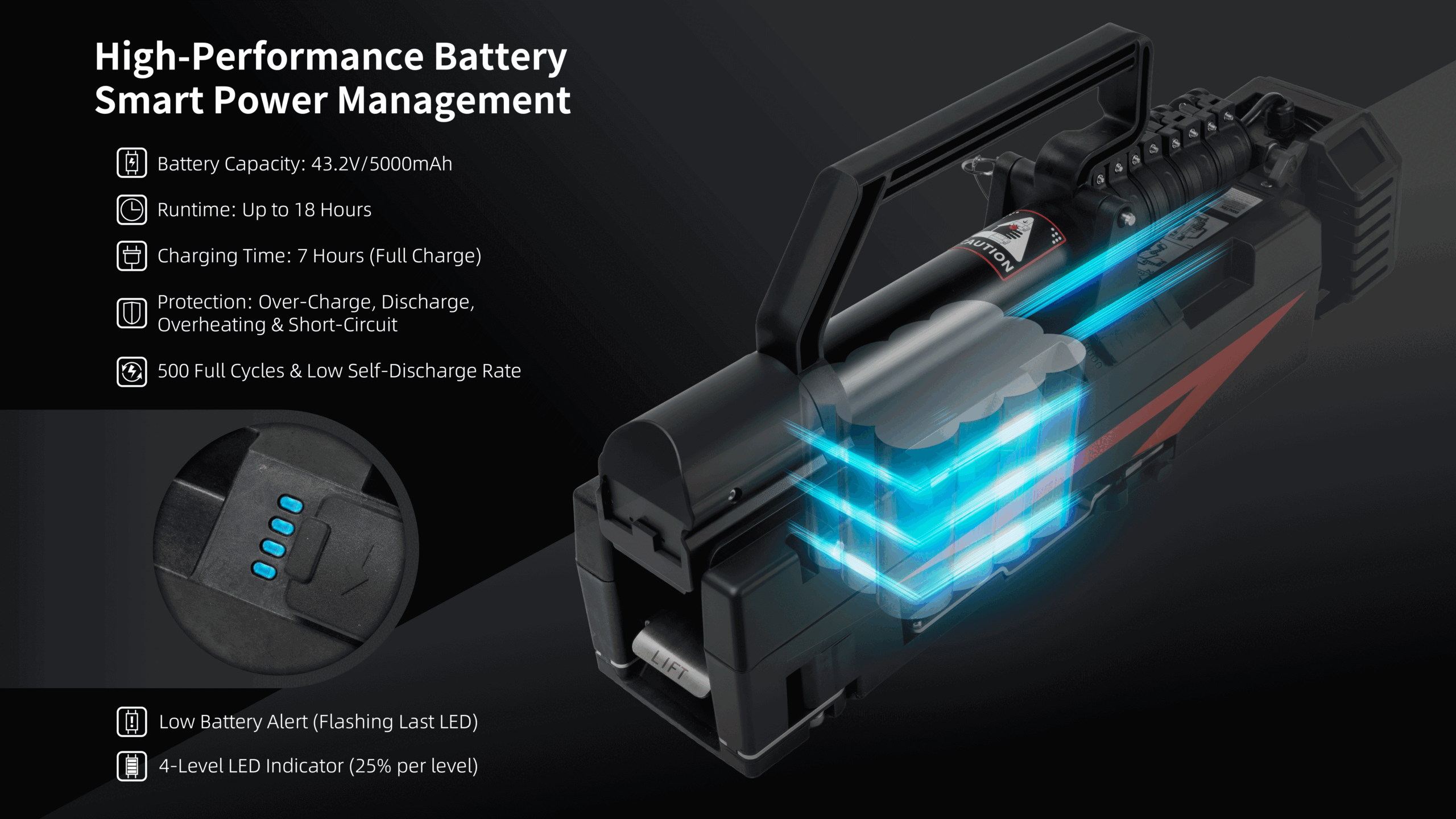

Battery type: | 12×21700 Lithium battery |
Charging way: | Matched 1000/12-02-□ adapter |
Charging time: | < 7 h |
